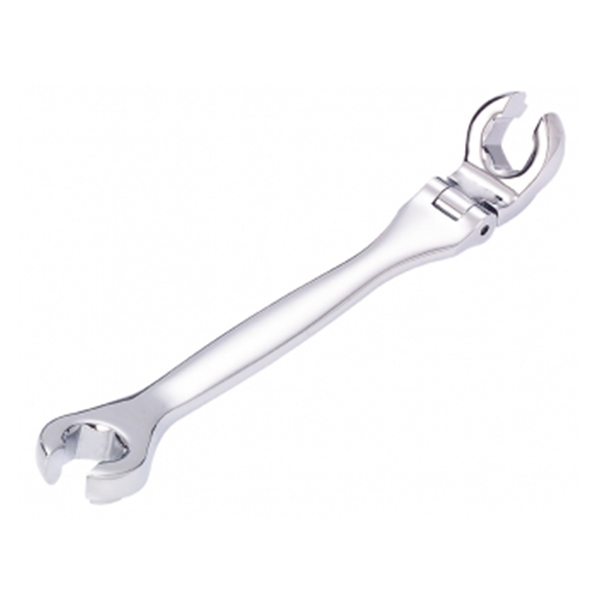

FLEXIBLE FLARE NUT WRENCH

CM-520A

Additional files

WURTH-0608.pdf
Inquiry
  • Made with chrome vanadium steel (6140)
  • Mirror polish & satin finish
  • Flexible head folds up to 230∘
  • Traditional flare nut wrench and crowfoot function
  • Ergonomic design
  • Suitable for all hydraulic , fuel , oil brake , A/C , O2 Sensor , auto tool and air line work.

proimages/product/Wrench_Set/11-15/CM-520A/d1.jpg proimages/product/Wrench_Set/11-15/CM-520A/d2.jpg proimages/product/Wrench_Set/11-15/CM-520A/d3.jpg proimages/product/Wrench_Set/11-15/CM-520A/d4.jpg proimages/product/Wrench_Set/11-15/CM-520A/d5.jpg proimages/product/Wrench_Set/11-15/CM-520A/d6.jpg
Metric

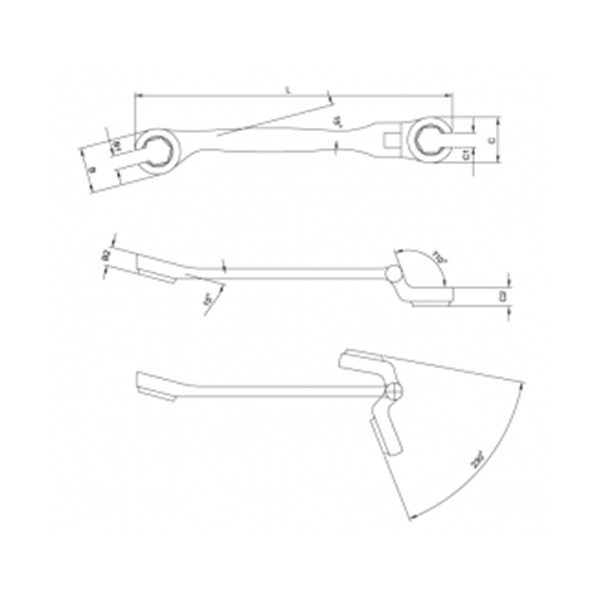

SIZEBxCB1xC1B2xC2L(mm)
6 15x15 4.5x4.5 7x7 123
7 15x15 5x5 7x7 123
8 18x18 6x6 7x7 128
9 18x18 6.5x6.5 7x7 128
10 18x18 7x7 7x7 128
11 22x22 8.5x8.5 9x9 148
12 22x22 9x9 9x9 148
13 26x26 10x10 11x11 175
14 26x26 11x11 11x11 175
15 26x26 12x12 11x11 175
16 32x32 13x13 13x13 190
17 32x32 14x14 13x13 190
18 32x32 14.5x14.5 13x13 190
19 32x32 15x15 13x13 190
21 37x37 16x16 16x16 218
22 37x37 17x17 16x16 218
24 40x40 18x18 16x16 235
27 45x45 20x20 17x17 270
Item No.Content
CM-520A-M4 8-10-11-12
CM-520A-M5 8-9-10-11-12
CM-520A-M7 8-10-11-12-13-14-17
CM-520A-M9 8-9-10-11-12-13-14-15-17
SAE
SIZEBxCB1xC1B2xC2L(mm)
1/4” 15x15 4.5x4.5 7x7 123
5/16” 18x18 6x6 7x7 128
3/8” 18x18 7x7 7x7 128
7/16” 22x22 8.5x8.5 9x9 148
1/2” 22x22 9x9 9x9 148
9/16” 26x26 11x11 11x11 175
5/8” 32x32 13x13 13x13 190
11/16” 32x32 13x13 13x13 190
3/4” 32x32 13x13 13x13 190
13/16” 37x37 16x16 16x16 218
7/8” 37x37 16x16 16x16 218
15/16” 40x40 18x18 16x16 235
1” 45x45 20x20 17x17 270
1-1/16” 45x45 20x20 17x17 218
Item No.Content
CM-520A-S4 5/16”-3/8”-7/16”-1/2”
CM-520A-S5 5/16”-3/8”-7/16”-1/2”-9/16”
CM-520A-S7 5/16”-3/8”-7/16”-1/2” -9/16”-5/8”-11/16”
CM-520A-S9 5/16”-3/8”-7/16”-1/2” -9/16”-5/8”-11/16”-3/4”-7/8”
