75˚轉體搖頭套筒板手
產品描述

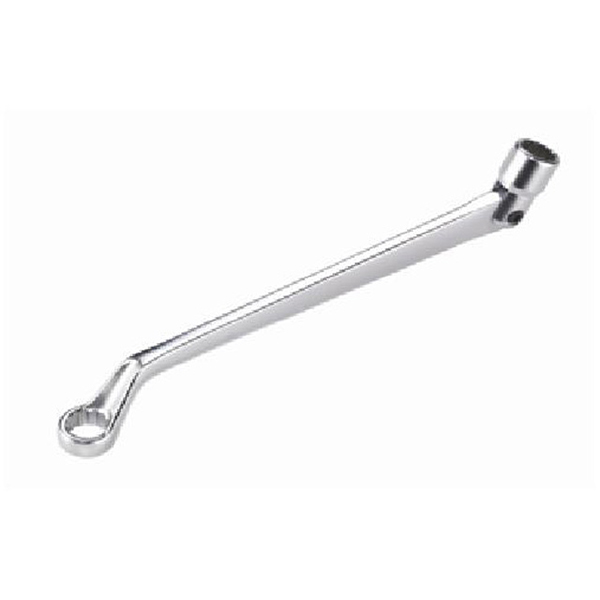

CM-538S
- Made with chrome vanadium steel (6140)
- Mirror polish & silver satin finished
- 75° off beam at fixed box end.
- Flexible socket end, can be folded up to 140°.
- Ergonomic design.
- Deeper accessibility at ring head.
- Accorded with DIN standard.

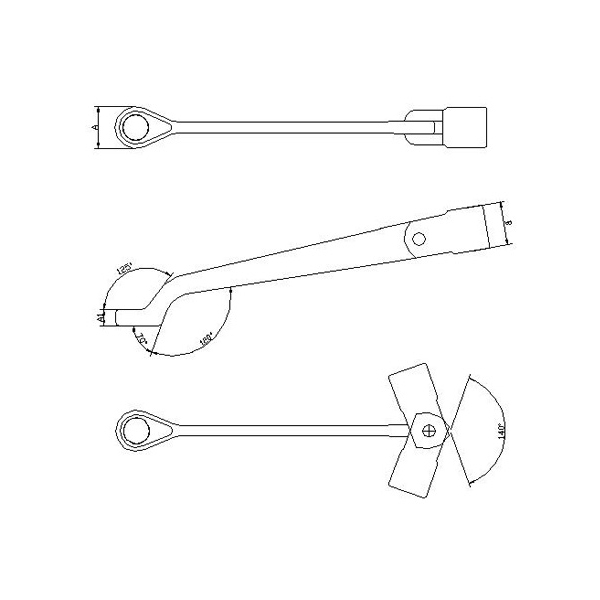

| SIZE | A | A1 | C | L(mm) |
|---|---|---|---|---|
| 8 | 17 | 8 | 13 | 180 |
| 9 | 17 | 8 | 13 | 180 |
| 10 | 17 | 8 | 16 | 182 |
| 11 | 19.5 | 9 | 16 | 182 |
| 12 | 19.5 | 9 | 19 | 205 |
| 13 | 23 | 10 | 19 | 205 |
| 14 | 23 | 10 | 21 | 222 |
| 15 | 23 | 10 | 21 | 222 |
| 16 | 26.1 | 11 | 24 | 240 |
| 17 | 26.1 | 11 | 24 | 240 |
| 18 | 28.8 | 12 | 26 | 280 |
| 19 | 28.8 | 12 | 26 | 280 |
| Set | Content |
|---|---|
| CM-538S-M12 | 8-9-10-11-12-13-14-15-16-17-18-19 |
| SIZE | A | A1 | C | L(mm) |
| 5/16″ | 17 | 8 | 13 | 180 |
| 3/8” | 17 | 8 | 16 | 182 |
| 7/16” | 19.5 | 9 | 16 | 182 |
| 1/2” | 19.5 | 9 | 19 | 205 |
| 9/16” | 23 | 10 | 21 | 222 |
| 5/8” | 26.1 | 11 | 24 | 240 |
| 11/16” | 26.1 | 11 | 24 | 240 |
| 3/4” | 28.8 | 12 | 26 | 280 |
| Item No. | Content |
|---|---|
| CM-538A-I8 | 5/16″-3/8″-7/16″-1/2″-9/16″-5/8″-11/16″-3/4″ |
