雙搖頭油管板手
產品描述

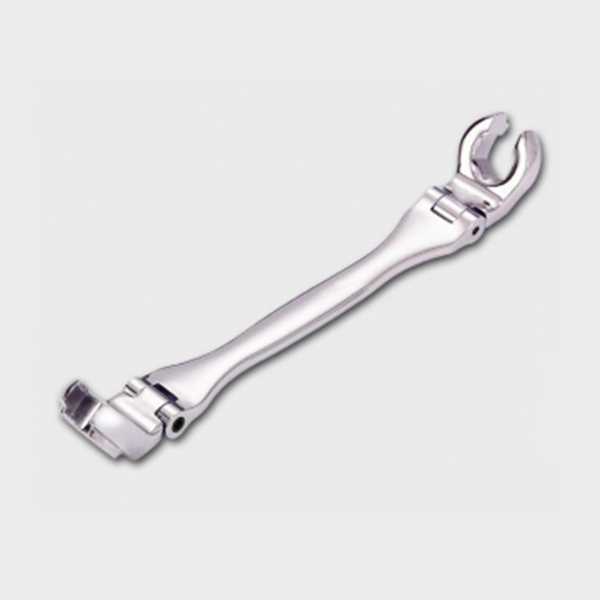

CM-520B
- Made with chrome vanadium steel (6140)
- Mirror polish & satin finish
- Flexible head folds up to 230∘
- Traditional flare nut wrench and crowfoot function
- Ergonomic design
- Suitable for all hydraulic , fuel , oil brake , A/C , O2 Sensor , auto tool and air line work.

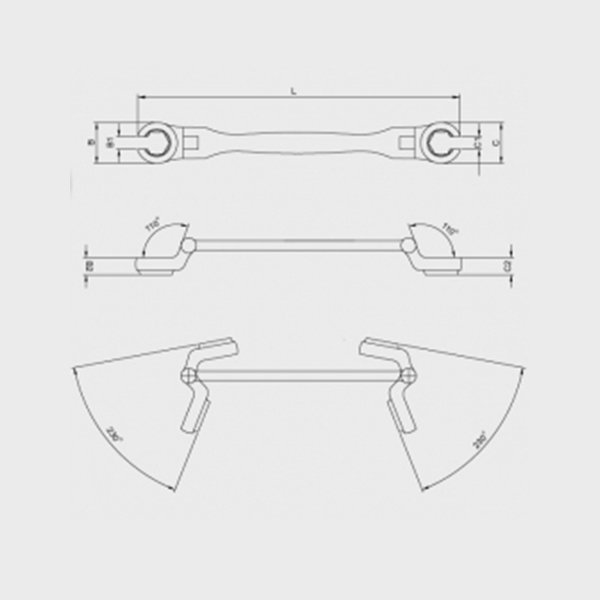

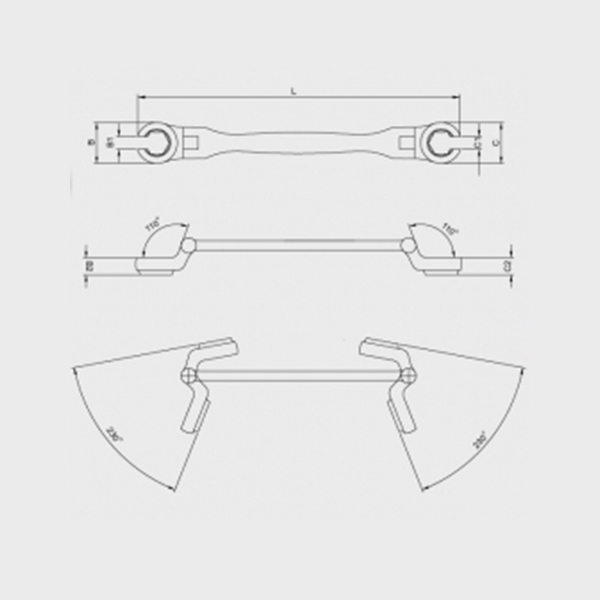

| IZE | BxC | B1xC1 | B2xC2 | L(mm) |
|---|---|---|---|---|
| 6x8 | 15x18 | 4.5x6 | 6.7x7 | 145 |
| 7x9 | 15x18 | 5x6.5 | 6.7x7 | 145 |
| 8x9 | 18x18 | 6x6.5 | 7x7 | 150 |
| 8x10 | 18x18 | 6x4 | 7x7 | 150 |
| 8x11 | 18x22 | 6x8.5 | 7x9 | 154 |
| 9x11 | 18x22 | 6.5x8.5 | 7x9 | 154 |
| 10x11 | 18x22 | 7x8.5 | 7x9 | 154 |
| 10x12 | 18x22 | 7x9 | 7x9 | 154 |
| 11x13 | 22x26 | 8.5x10 | 9x11 | 175 |
| 12x13 | 22x26 | 9x10 | 11x11 | 175 |
| 12x14 | 22x26 | 9x11 | 9x11 | 175 |
| 12x15 | 22x26 | 9x12 | 9x11 | 175 |
| 13x14 | 26x26 | 10x11 | 11x11 | 185 |
| 13x15 | 26x26 | 10x11 | 11x11 | 185 |
| 14x15 | 26x26 | 11x12 | 11x11 | 185 |
| 13x17 | 26x32 | 10x14 | 11x12.5 | 219 |
| 13x18 | 26x32 | 10x14.5 | 11x12.5 | 219 |
| 14x16 | 26x32 | 11x13 | 11x12.5 | 219 |
| 14x17 | 26x32 | 11x14 | 11x12.5 | 219 |
| 14x18 | 26x32 | 11x14.5 | 11x12.5 | 219 |
| 14x19 | 26x32 | 11x15 | 11x12.5 | 219 |
| 15x16 | 26x32 | 12x13 | 11x12.5 | 219 |
| 15x17 | 26x32 | 12x14 | 11x12.5 | 219 |
| 15x19 | 26x32 | 12x15 | 11x12.5 | 219 |
| 16x17 | 32x32 | 13x14 | 12.5x12.5 | 220 |
| 16x18 | 32x32 | 13x14.5 | 12.5x12.5 | 220 |
| 17x18 | 32x32 | 14x14.5 | 12.5x12.5 | 220 |
| 17x19 | 32x32 | 14x15 | 12.5x12.5 | 220 |
| 18x19 | 32x32 | 14.5x15 | 12.5x12.5 | 220 |
| 19x21 | 32x37 | 15x16 | 12.5x16 | 240 |
| 19x22 | 32x37 | 15x17 | 12.5x16 | 240 |
| 21x24 | 37x40 | 15x18 | 16x17 | 258 |
| 22x24 | 37x40 | 17x18 | 16x17 | 258 |
| 27x30 | 45x49 | 20.5x21 | 16x21 | 310 |
| Item No. | Content |
|---|---|
| CM-520B-M3 | 10x12-13x14-15x17 |
| CM-520B-M3 | 8x11-10x12-13x17-14x19 |
| CM-520B-M6 | 8x9-10x11-12x13-14x15-16x17-18x19 |
| SIZE | BxC | B1xC1 | B2xC2 | L(mm) |
|---|---|---|---|---|
| 1/4"x5/16" | 15x18 | 4.5x6 | 6.7x7 | 145 |
| 5/16"x7/16" | 18x22 | 6x8.5 | 7x9 | 154 |
| 3/8"x7/16" | 18x22 | 7x8.5 | 7x9 | 154 |
| 3/8"x1/2" | 18x22 | 7x9 | 7x9 | 154 |
| 1/2"x9/16" | 22x26 | 9x11 | 9x11 | 175 |
| 9/16"5/8" | 26x32 | 11x14 | 11x12.5 | 219 |
| 5/8"x11/16" | 32x32 | 13x14 | 12.5x12.5 | 220 |
| 5/8"x3/4" | 32x32 | 13x15 | 12.5x12.5 | 220 |
| 11/16"x3/4” | 32x32 | 14x15 | 12.5x12.5 | 220 |
| 3/4"x13/16” | 32x37 | 15x16 | 12.5x16 | 240 |
| 3/4"x7/8” | 32x37 | 15x17 | 12.5x16 | 240 |
| 13/16"x15/16” | 37x40 | 15x18 | 16x17 | 258 |
| 7/8"x15/16" | 37x40 | 17x18 | 16x17 | 258 |
| Item No. | Content |
|---|---|
| CM-520B-S3 | 3/8"x7/16"-5/8"x11/16"-1/2"x9/18" |
| CM-520B-S4 | 5/16"x7/16"-3/8"x1/2"-9/16"x5/8"-11/16"x3/4" |
| CM-520B-S6 | 1/4"x5/16"-3/8"x7/16"-1/2"x9/16"-5/8"x11/16" -3/4"x13/16"-7/8"x15/16" |
